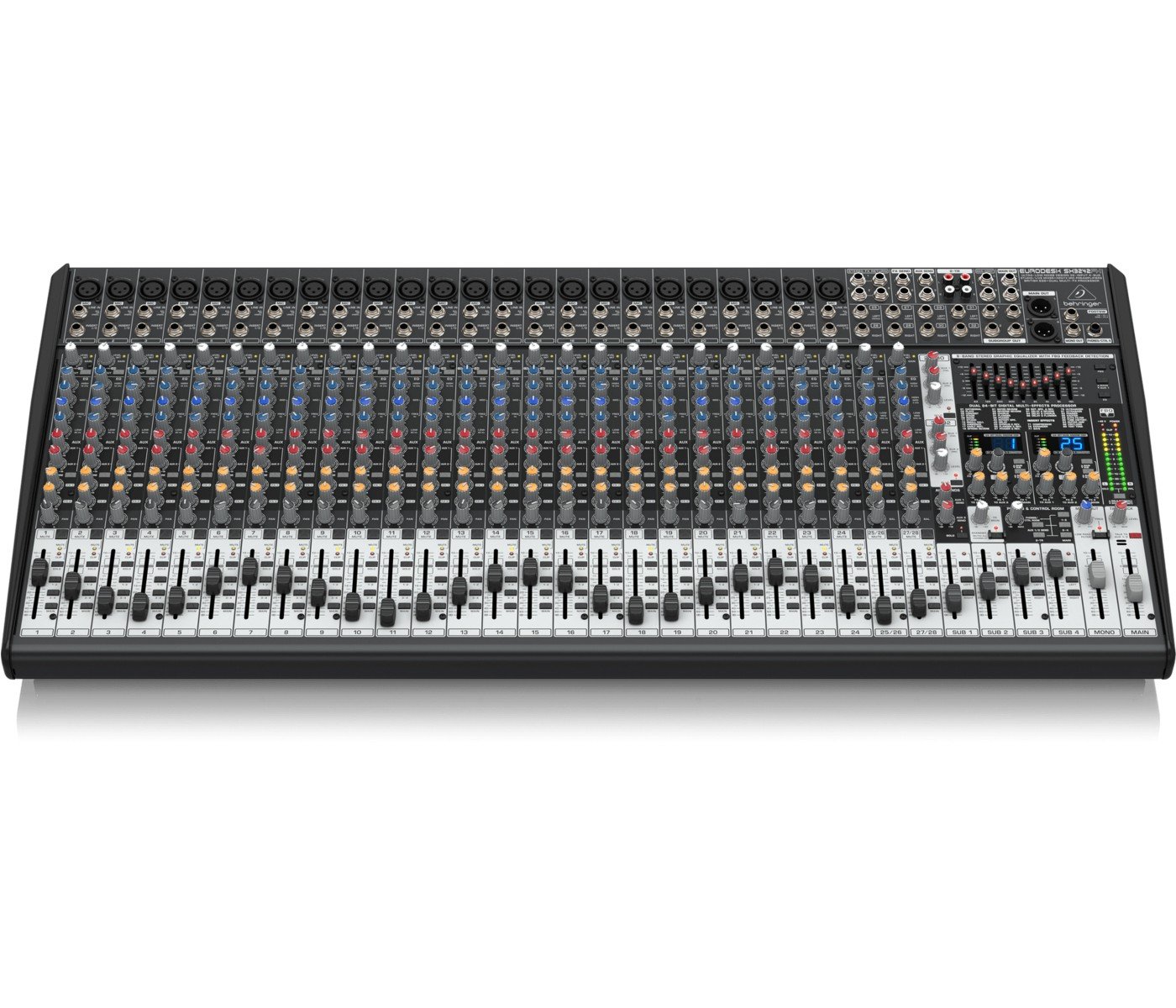

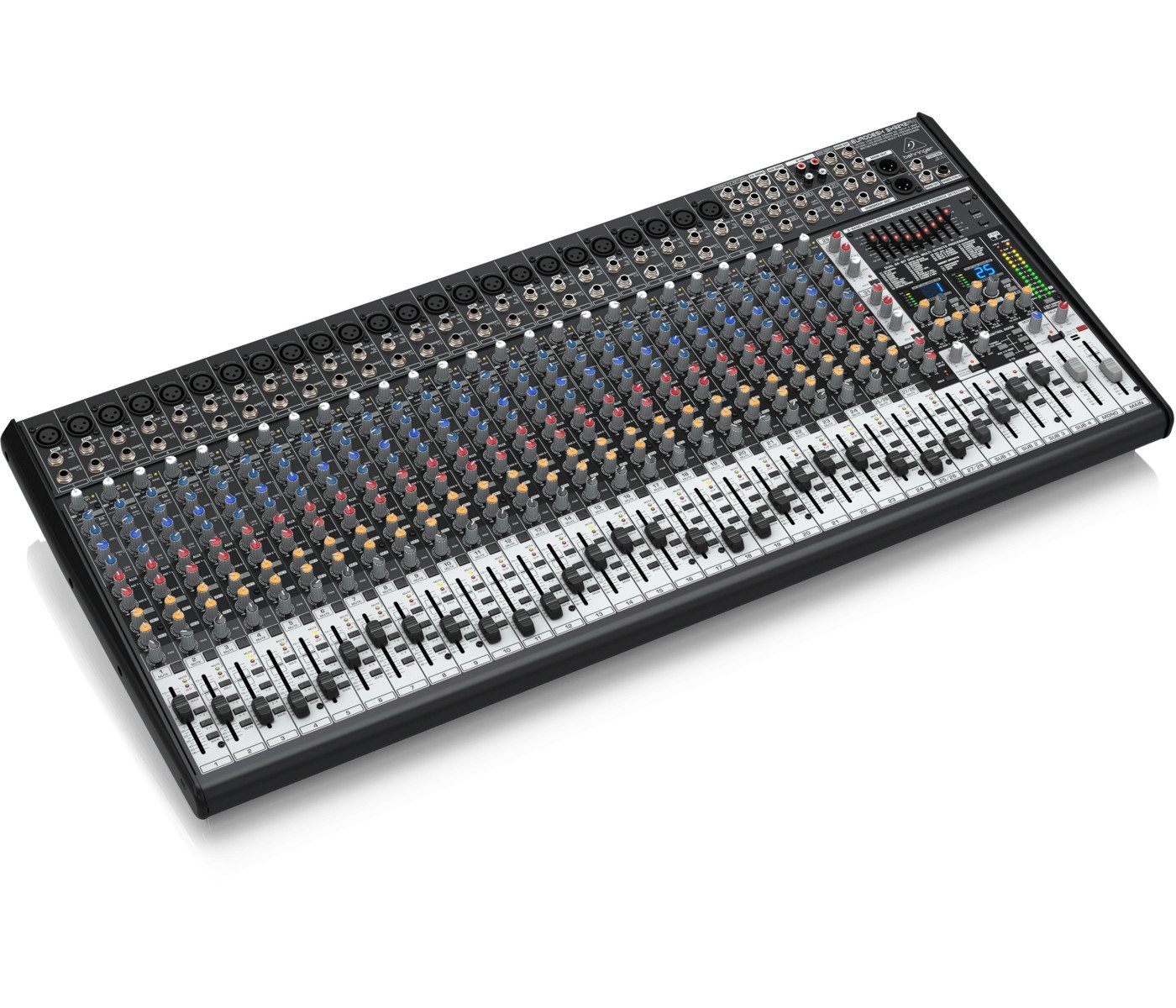

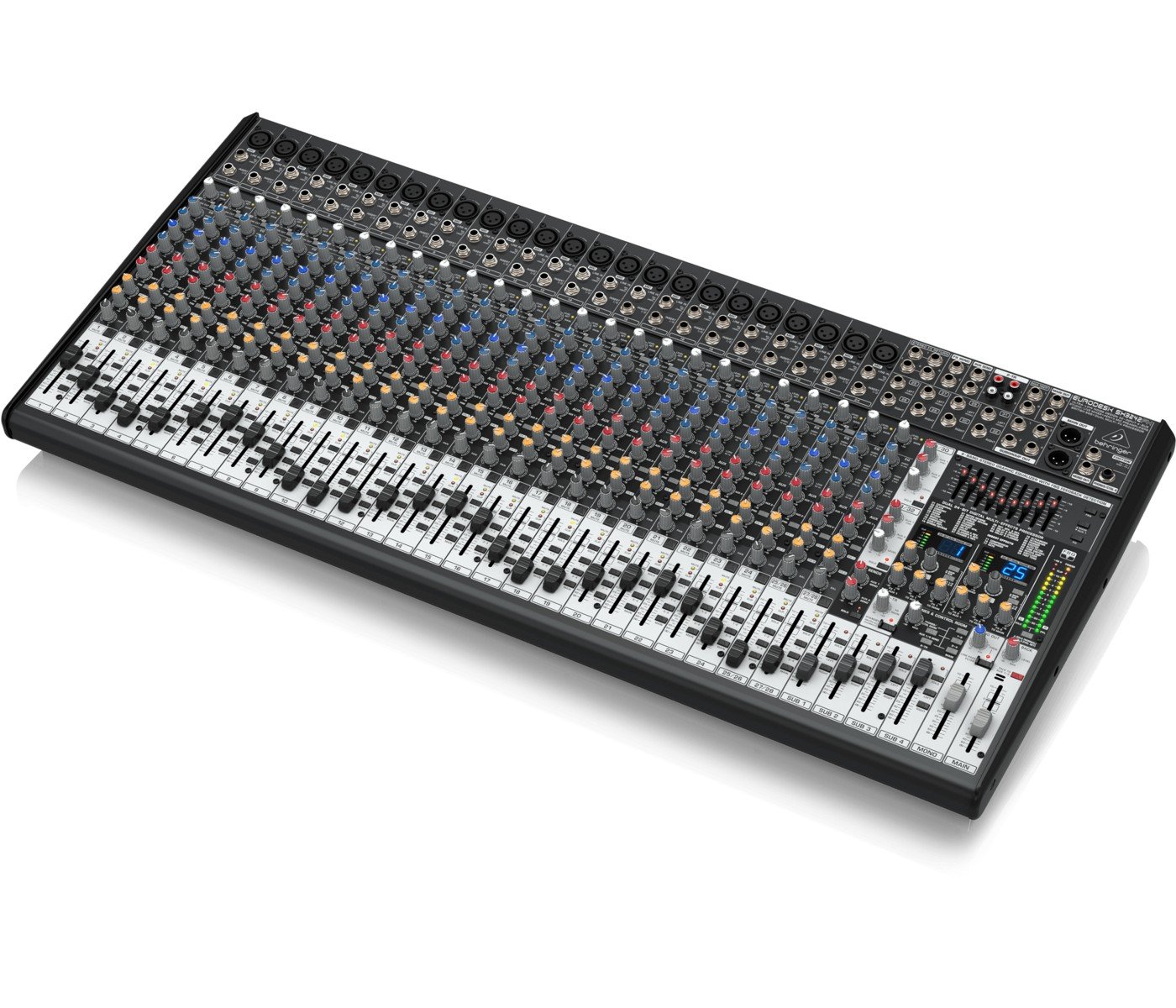

The 32-Input, 4-Bus EURODESK SX3242FX allows you to effortlessly achieve premium-quality sound, thanks to 24 of our studio-grade XENYX Mic Preamps, 2 full stereo channels with 4-band EQ, plus 2 additional sets of stereo inputs channels with Level and Aux controls.
All mono channels feature our ultra-musical, 3-band “British” channel EQs, complete with a semi-parametric mid band for the ultimate in sound sculpting. Add to this not one, but two of our 24-bit dual-engine stereo FX processors with 99 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects – and the SX3242FX becomes an incredibly versatile mixer for your recording projects and live performances.
Mono Inputs
| Microphone inputs (XENYX Mic preamp) |
|
| Type |
XLR connector, electronically balanced, discrete input circuit |
| Mic E.I.N. (20 Hz – 20 kHz) |
|
| @ 0 ? source resistance |
-134 dB / 135.7 dB A-weighted |
| @ 50 ? source resistance |
-131 dB / 133.3 dB A-weighted |
| @ 150 ? source resistance |
-129 dB / 130.5 dB A-weighted |
Frequency Response
| <10 Hz – 160 kHz |
-1 dB |
| <10 Hz – 200 kHz |
-3 dB |
| Gain range |
+10 dB to +60 dB |
| Max. input level |
+12 dBu @ +10 dB GAIN |
| Impedance |
approx. 2.6 k? balanced |
| Signal-to-noise ratio |
110 dB / 112 dB A-weighted (0 dBu In @ +22 dB GAIN) |
| Distortion (THD + N) |
0.005 % / 0.004 % A-weighted |
Line Input
| Type |
¼” TRS jack, electronically balanced |
| Impedance |
approx. 20 k? balanced, approx. 10 k? unbalanced |
| Gain range |
-10 dB to +40 dB |
| Max. input level |
+22 dBu @ 0 dB GAIN |
| Fade-Out Attenuation (Crosstalk Attenuation) |
|
| Main fader closed |
90 dB |
| Channel muted |
84 dB |
| Channel fader muted |
85 dB |
| Frequency response (Mic In ? Main Out) |
|
| <10 Hz – 90 kHz |
+0 dB / -1 dB |
| <10 Hz – 160 kHz |
+0 dB / -3 dB |
Stereo Inputs
| Type |
2 x ¼” TRS jack, balanced |
| Impedance |
approx. 20 k? balanced, approx. 10 k? unbalanced |
| Gain range |
-20 dB to +20 dB |
| Max. input level |
+22 dBu @ 0 dB GAIN |
CD/Tape In
| Type |
RCA connector |
| Impedance |
approx. 10 k? |
| Max. input level |
+22 dBu |
Equalizer
| EQ Mono Channels |
|
| LOW |
80 Hz / ±15 dB |
Buy the Behringer SX3242FX Eurodesk Mixer at AudioStoreDubai.com.
The Behringer SX3242FX Eurodesk is a powerful 32-input, 4-bus analog mixer built for professional studio recording and live sound reinforcement. Featuring 24 XENYX mic preamps, dual 24-bit multi-effects processors with 99 presets, and a 9-band stereo graphic EQ, it delivers outstanding audio quality and flexible sound control. Each channel includes a 3-band EQ with sweepable mids, one-knob compressors (on mono channels), and four aux sends for versatile routing. Whether you’re mixing a live band, managing a church setup, or running a studio session, the SX3242FX offers the capacity and clarity you need in a reliable, road-ready format. Order now from AudioStoreDubai.com for fast delivery across Dubai, Abu Dhabi, and Sharjah.
