Description

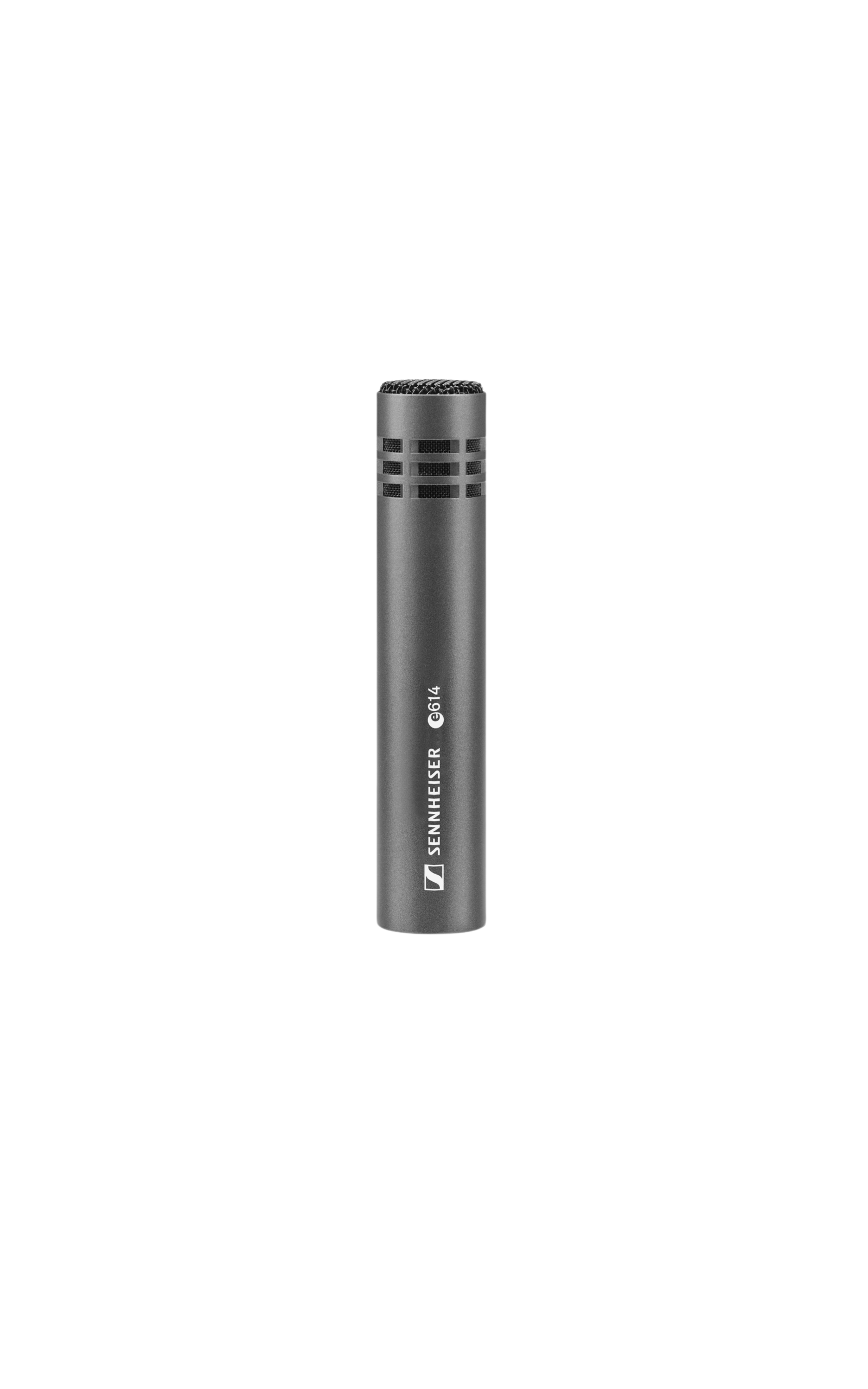

The e 614 is a small, fast condenser that catches the shimmer of cymbals and the detail of acoustic instruments. Its supercardioid pattern and medium sensitivity help keep other instruments out on stage. Needs phantom power (12–48 V).
Highlights
- Fast transient response for cymbals and percussion
- Nearly flat 40 Hz – 20 kHz response
- Supercardioid pattern to reduce bleed
- Handles high sound pressure levels
- Compact size for easy placement
Good for
Drum overheads, hi-hat, percussion, acoustic guitar, strings, woodwind and home recording.
Specifications
| Type | Condenser (electret) |
|---|---|
| Pickup pattern | Supercardioid |
| Frequency response | 40 – 20,000 Hz |
| Sensitivity | 3.0 mV/Pa |
| Self-noise | 24 dB(A) |
| Nominal impedance | 50 Ω |
| Phantom power | P12 – P48 V |
| Connector | 3-pin XLR |
| Dimensions | Ø 20 × 100 mm |
| Weight | 93 g |
In the box
- e 614 microphone
- MZQ 100 microphone clip
- Pouch
- Quick guide
